BANC MOTORIZAT PENTRU DEZMEMBRAT PALETI DIN LEMN

BANC MOTORIZAT PENTRU DEZMEMBRAT PALETI DIN LEMN
Structura de sus?inere cu picioarele deauto-nivelare ?i fixarea  IN podea
Dispozitiv de tensionare a panzei cu ajustare de 100 mm (posibilitatea utiliz?rii panzelor  sudate)
Grosime panza: 0,72 mm


Actionare  cu picior prin pedala
Carter deschis
Grile de protec?ie din spate ?i de sus
Dimensiunile paletului:
L??imea maxim?: 1300 mm
Lungimea maxim?: la discre?ie
În?l?imea maxim?: 180 mm
Muncitori recomandati:
Un singur muncitor  pentru paleti pana la max.1500 mmlungime
Doi muncitori  pentru  palet mai mare de 1500 mm
Conexiune electric? 5kw 380v 50Hz
Compresor de aer recomandat de 100 L / min
BANC DE LUCRU  PENTRU REPARAREA PALETELOR
PENTRU 1 MUNCITOR CU ALIMENTARE MANUALA
Descriere
Masa adecvata pentru pale?i EPAL 800 x1200 mm
Balancer pentru 2 pistoale pnumatice  pentru fixarea manuala in cuie
Incluse 2 pistoale pneumatice:


Înc?rcarea ?i extragerea manual? a paletului
OP?IONAL

Adecvat pentru repararea partii superioare a paletilor

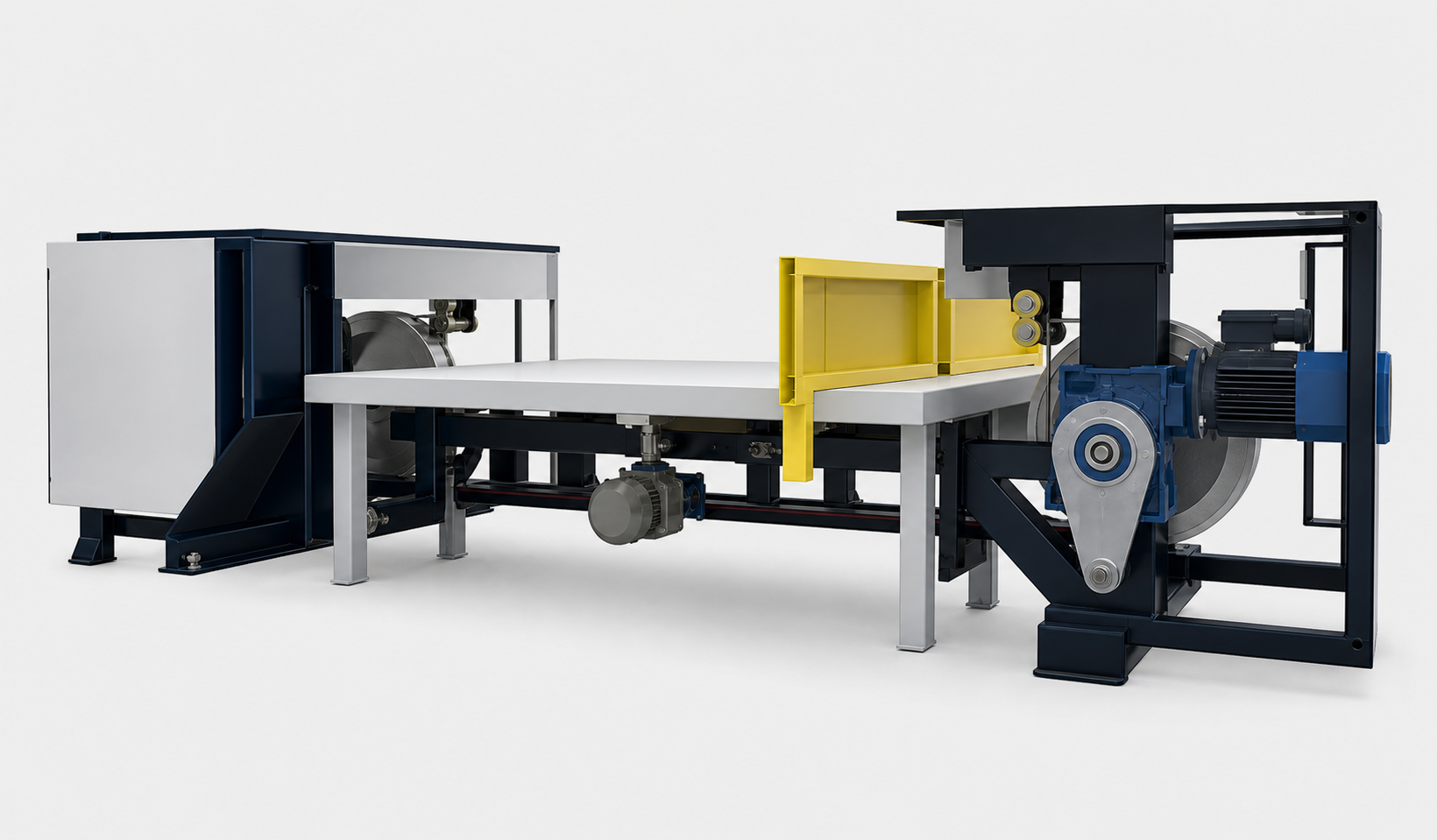

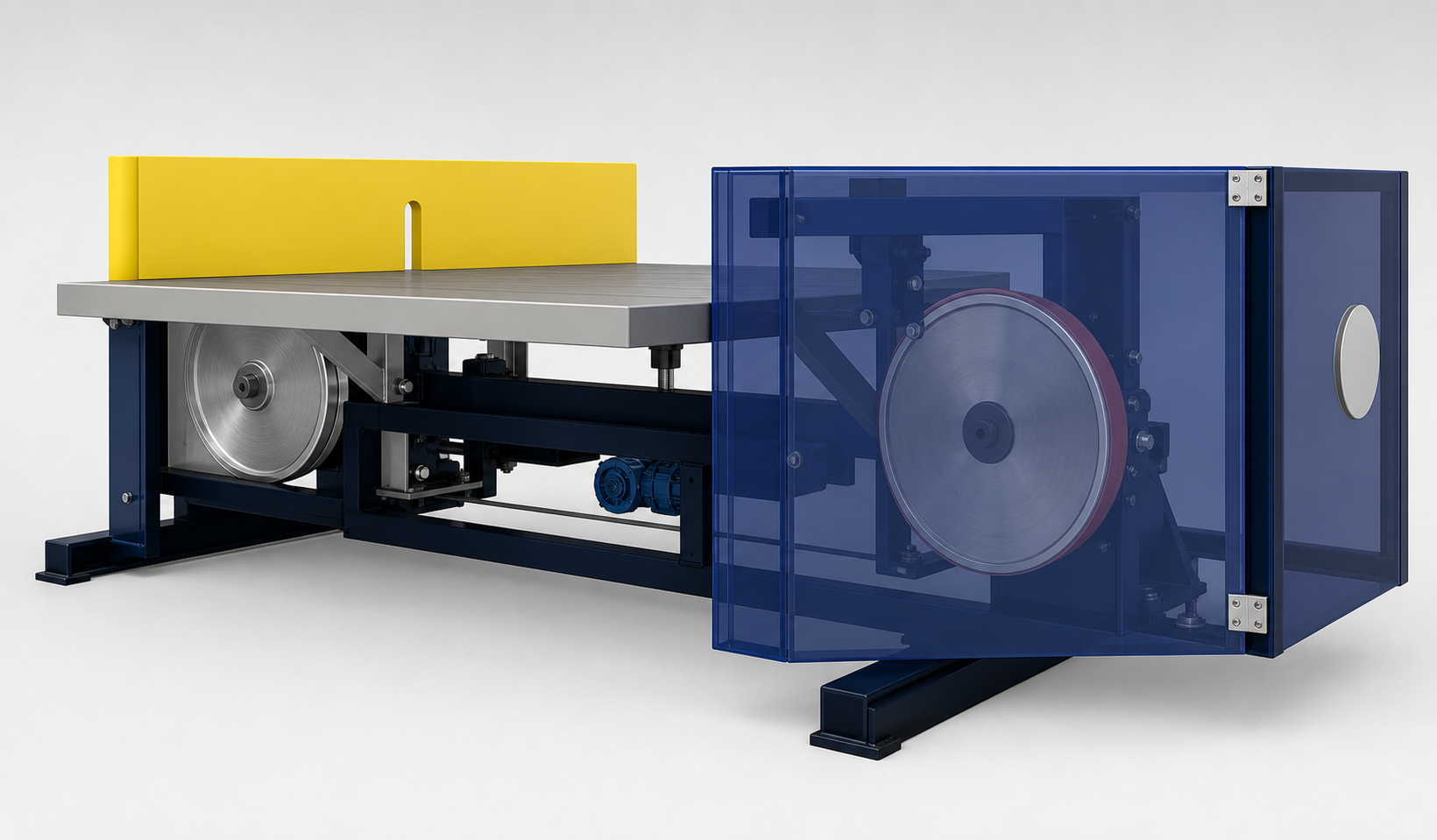

WORKBENCH MOTORIZED FOR DISMANTLING THE WOOD PALLETS

Supporting structure with self-auto levelling feet and floor fixing
Blade tensioner with 100 mm adjustment (possibility of using re-
welded blades)
Blade thick: 0.72mm
Worktable adjustable in height up to 160 mm;
Lateral pneumatic lever pusher;

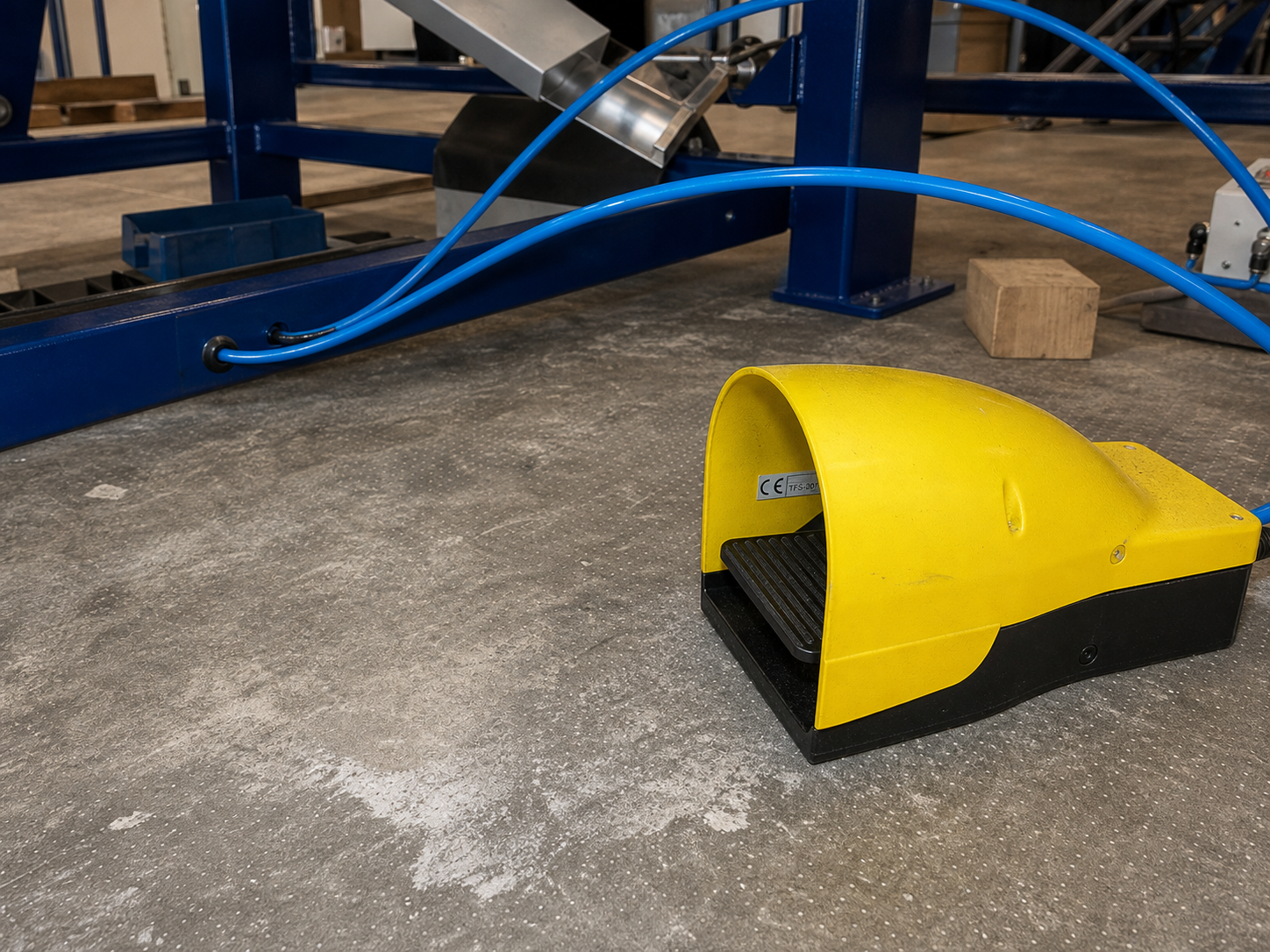

Foot operated
Carter openable
Rear and top protection grilles
Pallet dimensions:
Maximum width: 1300mm
Maximum Length: at discretion
Maximum height: 180 mm
Suggested Operators:
Single operator for pallets up to max. 1500 lenght
Two Operators per pallet greater than 1500
Electrical connection 5kw 380v 50hz
Recommended air compressor of 100 L / min

WORKING BANK FOR REPAIR OF PALLETS

FOR 1 OPERATORS. MANUAL LOADING PALLET
Descriptions
Table suitable for pallet EPAL 800x1200 mm
Balancer for 2 gun for fixing wood in manual
Including 2 pneumatic nails guns:
For nails up to 45 mm
For nails up to 90 mm
Manual loading and extraction
OPTIONAL
Bend nails system with disappearance. Frame with high rakes for the
movement of 2 plates of nail riveting (right / left).
Suitable when you repair upper tables.
